المنزل > المنتجات > مؤشر وزن > Green Display Water-Resistant Indicator BXK315A1-21GF - Heavy-Duty Design

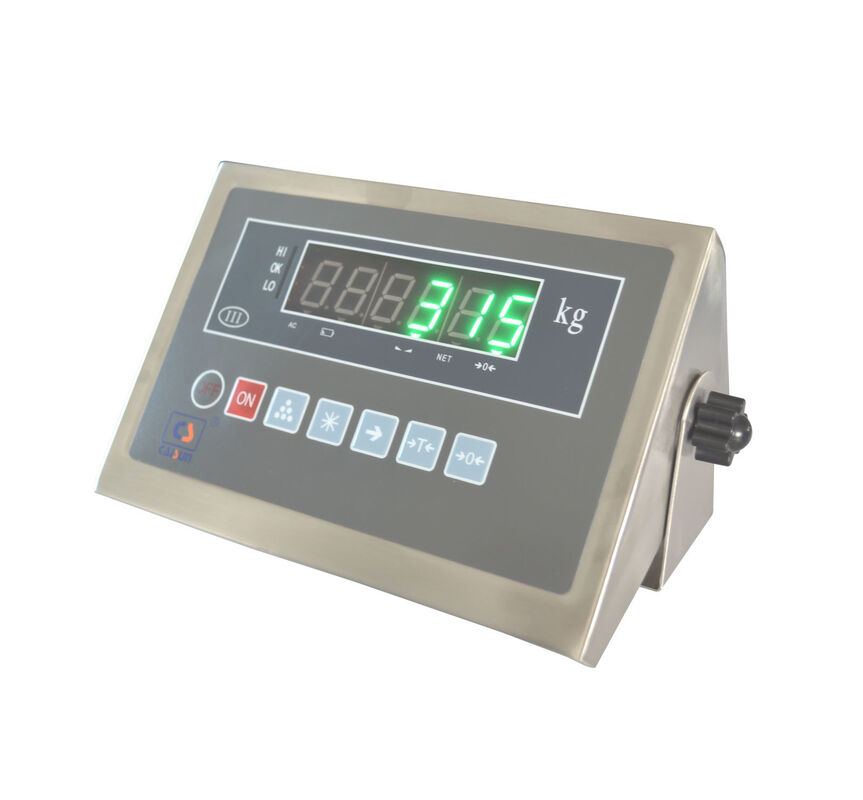

Green Display Water-Resistant Indicator BXK315A1-21GF - Heavy-Duty Design

تفاصيل المنتج

مكان المنشأ: الصين

اسم العلامة التجارية: Brans

رقم الموديل: BXK315A1-21GF

شروط الدفع والشحن

الحد الأدنى لكمية: 1 جهاز كمبيوتر

وقت التسليم: أسبوع واحد

شروط الدفع: تي/تي

القدرة على العرض: 300pcs/شهر

احصل على أفضل سعر
إبراز:

water-resistant weighing indicator,heavy-duty weighing indicator,green display weighing indicator

,

heavy-duty weighing indicator

,

green display weighing indicator

السكن:
الفولاذ المقاوم للصدأ
تصنيف الحماية:
IP66 (مقاوم للماء)
عرض:
6 أرقام 20.2 ملم LED الأخضر
تحميل محرك الخلية:
4 × 350 أوم أو 8 × 700 أوم
تواصل:
RS-232C/RS-485
واجهة الطابعة:
RS-232C المسلسل
تعيين النقاط:
مرحبا/موافق/لو
تحذير الطاقة:
تنبيه انخفاض البطارية
أبعاد:
265 × 222 × 161 ملم
التطبيقات:
ميزان المنصة الإلكترونية، مقياس الوزن
السكن:
الفولاذ المقاوم للصدأ
تصنيف الحماية:
IP66 (مقاوم للماء)
عرض:
6 أرقام 20.2 ملم LED الأخضر
تحميل محرك الخلية:
4 × 350 أوم أو 8 × 700 أوم
تواصل:
RS-232C/RS-485
واجهة الطابعة:
RS-232C المسلسل
تعيين النقاط:
مرحبا/موافق/لو
تحذير الطاقة:
تنبيه انخفاض البطارية
أبعاد:
265 × 222 × 161 ملم
التطبيقات:
ميزان المنصة الإلكترونية، مقياس الوزن
Green Display Water-Resistant Indicator BXK315A1-21GF - Heavy-Duty Design

Features


    1. This robust weighing indicator provides reliable 10 V/m immunity to radiated electromagnetic fields.

    2. High visibility is guaranteed by the 6-digit 20.2mm green LED display on this indicator.

    3. The weighing indicator is capable of driving up to 4 x 350Ω or 8 x 700Ω load cells.

    4. Precision weighing is achieved with 1,000,000 internal ADC counts in this indicator.

    5. Data management is flexible with both manual and automatic weight accumulation on the weighing indicator.

    6. Long-term accuracy is preserved by the automatic zero tracking function of this indicator.

    7. For system integration, the weighing indicator features an RS-232C/RS-485 interface with data output.

    8. Hardcopy records are easily obtained via the built-in RS-232C serial printer interface on this indicator.

    9. Process monitoring is streamlined using the HI/OK/LO set points available on the weighing indicator.

    10. To prevent data loss, the indicator includes a low battery warning feature.

Dimensions(mm)



265 × 222 × 161 mm



Shipping & Packaging

To ensure the safe delivery of your instrument, we will implement the following packaging measures:


  1. The instrument will be securely placed inside a dedicated cardboard box to prevent collisions and compression during transit.
  2. High-density foam will fill all interior corners and gaps to prevent movement of the instrument within the box.
  3. The instrument itself will be sealed in an anti-static bag for moisture and dust protection, accompanied by desiccant packets.
  4. An additional layer of bubble wrap will be wrapped around the exterior for enhanced cushioning and protection.
  5. The carton will be securely sealed with strong adhesive tape to prevent accidental opening during transit.
  6. A shipping label containing your address and product information will be prominently affixed to the outer carton.
  7. We will arrange shipment through a reputable logistics service provider.


After shipment, you will receive a tracking number to monitor the delivery status at any time. We recommend arranging for someone to be available to receive the package during the estimated delivery window to ensure successful delivery.
